TR-M300-E

Model: TR-M300-E

Overview

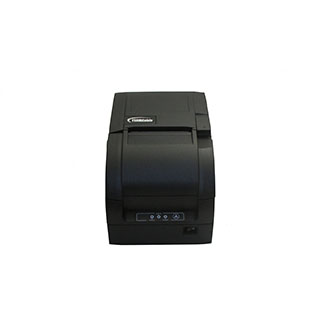

The TEAMSable TR-M300 produces clear, precise and archive quality documents. It is ideal for requisitions and receipts including coupons, rebates and special offers. Featuring trouble free drop-and-print paper loading, the extraordinarily reliable M300 provides paper “pull” technology for jam-free operation and best-in-class cutter performance. The internal power supply eliminates unsightly and messy cords and bricks.

• Choose a USB or Ethernet On-Board Interface
• Serial, Parallel, USB, Ethernet, Bluetooth and WiFi Interfaces Options
• Cutter Rated for 1,800,000 Cuts
• Energy Star Certified
• SDK Available for iOS and Android Operating Systems

Features

• Choose from USB or Ethernet on Board
• Serial, Parallel, Ethernet, USB, Bluetooth
and Wireless WiFi Interface Boards Available
• Auto-Cutter with Selectable Full or Partial Cut (Tear
Bar also Included)
• Two-Color Print – Uses Industry Standard ERC-38
Ribbon Cartridge
• Fast 4.7 Lines per Second Print Speed
• Drop and Print Paper Loading
• Stores and Prints Logo Images
• Built-In Wall Mount Capability
• Paper-End Sensor
• Adjustable Paper Near-End Sensor
• No Dip Switches
• Includes Starter Paper Roll, Paper Width Selector,
Appropriate Communications Cables, Power Cord

Modify or upgrade your printer with these easy-to-add options:
• Serial, Parallel, Ethernet, Bluetooth and Wireless WiFi Interface Boards are User Interchangeable
• USB+Cash Drawer Port or Ethernet+Cash Drawer Port
• Audio/Visual Print Messenger – For Noisy Kitchens – Alarm Sounds and Light Flashes When a New Order is Printed

SPECIFICATIONS

Print Speed 19.6mm per Second / 4.7 Lines per Second
Character Per Line Font A: 33/35, Font B 40/42
Characters Size Font A: 9×9, Font B: 7×9
Paper Roll Type Width: 80/76/69.5/57.5 mm ± 0.5 mm
Inking Supply ERC-38 Ribbon Cartridge (Black/Red)
Reliability MCBF 18,000,000 Lines
Character Set Alphanumeric: 95 International: 37
Extended Graphic 128 x 12 Page
Interpreter ESC/POSTM
Extended Graphic 128 x 11 Page
Interface USB, Serial/USB, Parallel/USB, Ethernet
Driver Windows XP, Windows 7, Windows 8/8.1
Drawer Port One RJ-12 (+24VDC)
(Maximum 2 Drawers- Supports Open and Close)
Data Buffer Receive Buffer: 8KB Ram
NV Bit Image Data: 128 KB
User NV Memory: 8KB
Power Supply 24V DC ±% Internal Adapter Included
Current/Power Usage 1.5A / 36W
Operating Temperature 40° ~ 114°F (5°~ 45°C)
Operating Humidity 20% ~ 90% RH (Non-Condensing)
Paper Cutting Method Auto-Cutter with Selectable Full or Partial Cut
Wireless 802.11 b/g/n 2.4GHz
Dimensions 6-1/4 “W x 6″H x 9-12″D
Weight 9 lbs.
