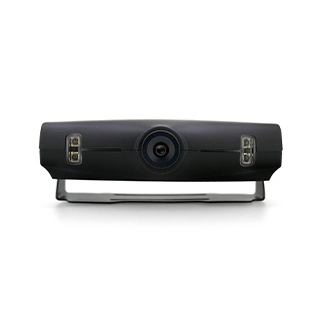

Model: CM-DW100


A device to protect you and your loved ones from the dangers of drowsy and distracted driving.

Once the engine starts, the Drive Guardian will immediately monitor the driver’s eyes and pupils. Depending on the type of behavior the driver exhibits –heavy/prolonged fluttering eyes due to sleepiness, looking away from the road due to distractions, the Drive Guardian will sound a variation of alerts. Having the Drive Guardian with you is just like having a protective companion by your side while you are driving.

• High-performance ARM CPU
• CMOS Image sensor
• USB 2.0/UART interface
• Protection circuitry for over-voltage/current, inverse voltage, and minimizing ripple noises
• Face and pupil detection and tracing algorithm
• CE/FCC/KC fully approved and RoHS compliance


• Detection & warning of drowsiness and negligence in keeping eyes forward while driving
• Infrared LEDs available at night and in tunnels
• Removal of irregular reflection by sunlight using special filters
• Detection/distinction of glasses and sunglasses
• 3-color operation status LED (in green/blue/red)
• Adoption of an alert micro-loudspeaker
• Works with both 12V and 24V fitting to any auto vehicles
• Easy mounting using a dedicated cradle Mute and 3-step volume control
• Adjustment of 3-step sensitivity
• Mute mode for the state of ‘Negligence in looking ahead’ using the motion recognition function
• Support of various USB accessories
• Connected with an external GSP


¼-Inch lens
CMOS Image processor
Flash memory (8 MB)
Interface with an external I/O and USB (UVC)
Up to 30 min long files (no looping or file locking)
High-power invisible infrared LED
Operation status LED (in green/blue/red)
Micro speaker (min. 90dB)
Voice IC for various warning, effective sounds, and pre-recorded announcements
Protection circuitry for over-voltage/current, inverse voltage, and minimizing ripple noises
Power Consumption: Max. 2.5W
Input Voltage: DC 12/24V
Operating Temperature: -4˚ ~ 158˚ F
Physical Dimensions: 3.6 x 0.9 x 1.8 inches
Net Weight: 2.8 oz. (mounting cradle included)
