15SJ

Model: 15SJ

Overview

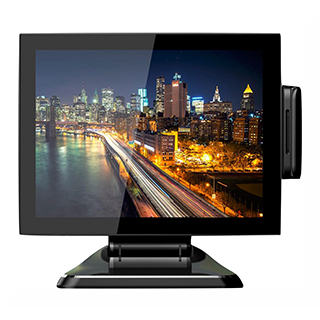

Introducing one of the latest TEAMSable all-in-one POS terminal, the TEAMSable SKY-15SJ. The TEAMSable SKY-15SJ POS touchscreen all-in-one terminal is perfectly suited as a client machine with its speedy Intel Quad Core Celeron CPU to keep up with daily usage. Complemented not only with its modern look and design, the SKY-15SJ also comes standard with a Intel Quad Core J1900 2.0Ghz CPU, 4G RAM, spill resistant zero bezel design, EZ-Access SSD storage, popular OS configuration choices, and a 3 year warranty with free tech support and a complimentary 90 day overnight rapid replacement with call tag program from date of purchase. You just can’t go wrong with the value the TEAMSable 15J brings to the table.

Features

• Intel Dual Core i3 2.7 GHz Processor
• Intel Quad Core i5 2.7 GHz Processor (Upgradable)
• Bezel-Free, PCAP Mulit-Touch Screen
• Water Resistant Front Bezel
• 128GB SSD ( Optional 320GB HDD)
• EZ-Access HD Bay
• Optional: MSR, VFD, 2nd LCD Display, EMV Smart Card Reader, NFC Reader

SPECIFICATIONS

Motherboard

CPU Intel Dual Core i3 6100TE 2.7 GHz Processor
Intel Quad Core i5 6600T 2.7 GHz Processor
Chipset Intel® H110
Memory 4GB Standard (DDR4 SO-DIMM x2)
Ethernet Intel® 82579V Gigabit Ethernet Controller for operation
at 10/100/1000 Mb/s
Audio Realtek* ALC 887 HD

Display

Monitor 15” LED-LCD
Touch Screen Type 10-Point Multi Touch
Resolution 1024 x 768
Dimension (mm) 349.6 (W) x 225 (D) x 348.7 (H)
Weight 6.44 kg
Power Supply Internal 96W (12V/8V) (External Power Adapter inside the stand)
Optional Integrated
Device		 MSR Card Reader (3 Tracks), VFD Customer Display,
Second Monitor Display, EMV Smart Card Reader, NFC Reader

I/O Ports

Serial Port x 3 RJ11
USB Port Total 6 (USB 3.0 x4, USB 2.0 x2)
Cash Drawer Port x1
VGA Port x1
HDMI Port x1
Ethernet Port RJ-45 Ethernet Port x 1
Audio MIC-in Port x 1 and Line-Out x1

Storage Device

HDD or SSD SATAIII HDD x 1

OS

OS Windows 10 IOT 64bit (embedded), POSReady 7
