10P
Model: 10P
Overview

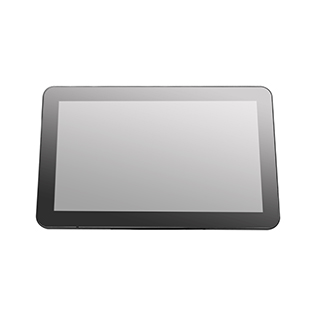

10″ Capacitive Touch Android Digital Signage
Features
• 10″ Capacitive touch digital signage display
• Perfect for retail or hospitality operations
• Price checker, inventory checker
• Restaurant ordering
• Payment processing
• Wall mountable or table stand optional
• Optional add-on device: Barcode Scanner, MSR
SPECIFICATIONS
Motherboard
| CPU | Cortex-A9 Quad Core 1.6 GHz |
| Memory | 2 GB DDR3 SDRAM |
| Ethernet | 10/100Mbps LAN |
| WiFi | 802.11 b/g/n |
| Bluetooth | BT 4.0 (Optional) |
| Video Formats | MKV, TS, FLV, AVI, VOB, MPG, DAT, ASF, RM, MOV, 3GP, MP4, WMV |
| Audio Formats | MP2, WMA, WAV, AAC, OGG, ASF |
| Picture Formats | JPG, BMP, GIF |
Display
| Monitor | 10.1” 1280 x 800 Digital TFT LCD |
| Touch Screen Type | 4-Point capacitive multi‐touch type |
| Back-Light | LED Side‐light type |
| Power Supply | 12V/2A AC/DC Adapter |
| Optional Integrated Device | MSR Card Reader, Barcode Scanner |
Storage Device
| NAND Flash | 8 GB |
I/O Ports
| USB Port | x 1 USB 2.0 |
| Micro USB | x 1 Micro USB 2.0 |
| Mini HDMI | Mini HDMI out, Type C x 1 |
| Add-On Module Slot | x 3 USB 2.0 |
| Ethernet Port | x 1 RJ-45 Ethernet Port |
| Audio | x 1 Speaker |
OS
| OS | Android 4.4.4 Jelly Bean |
